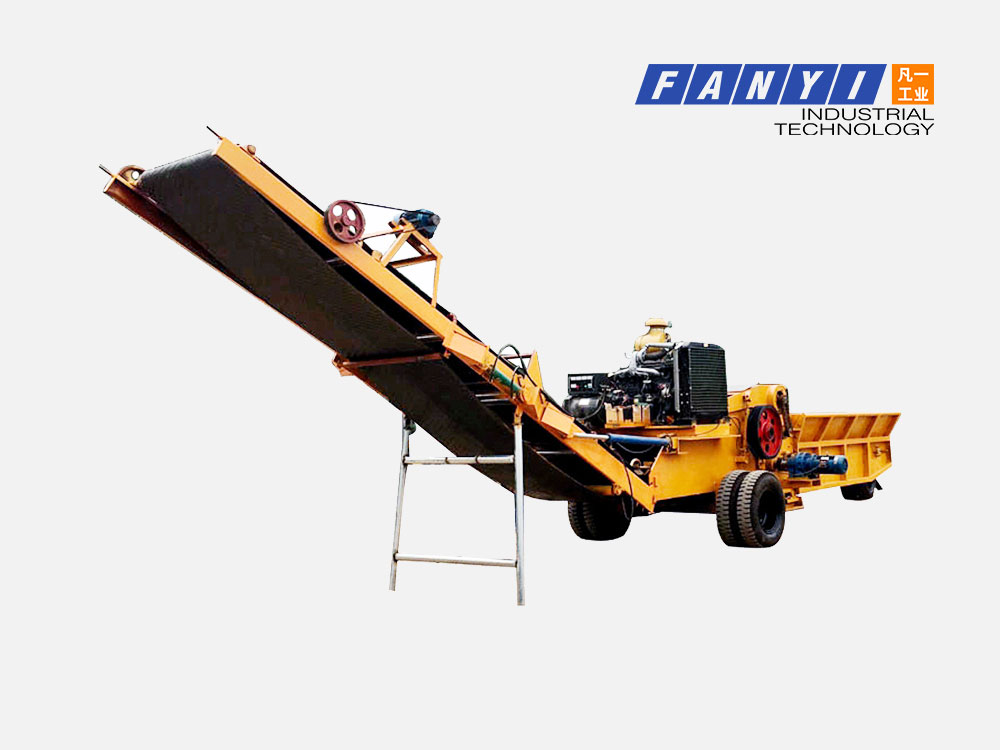

Mobile Wood Chipper
Wood chipper/wood chipper shredder is mainly used to crush big wood logs or wood timber, plywood, wood branches, furniture waste into small chips, the thickness of last chips is 3mm-5mm, length and width is about 15-30mm,it is wood chips not wood shavings. By adjusting knives gap, outlet chips dimension will be adjusted.
- Power could be electrical or diesel, from mini size to big size, fixed or mobile type
- The machine main structure is made of thick high strength carbon steel, cutter and blades are made of high strength wearable alloy steel.
CATEGORY: Wood chipper
DESCRIPTION
Mobile Wood Crusher is mainly used for waste plywood, wasted wood pallet, tree bark, slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding conveyor system, folding discharge rack and intelligent electrical control. Mobile Diesel Crusher is mainly used for places with no power output (Gobi desert, hills, woodland, hills, etc.), suitable for processing logs, branches, straw, vegetables, landscaping, garbage crushing etc.; All types of crushers and chippers can be made into a mobile folding type, and there are three mobile forms: steel wire tires, crawlers and vehicles, customers can choose and match at customers’ requirements.
Raw of Material Wood Chipper Machine
The wood chips processed by this machine are of high quality. The machine can also cut and process the residues and wastes of felled wood, such as branches, branches, slats, slats, log cores, waste veneers, etc. This machine can also cut forestry materials, sugarcane, reed, bamboo, etc. Wood, bamboo, coconut shell, etc.
The chipper is suitable for the industry of CREATING flower board, medium density board, wood fiber board, paper making, power plant, boiler and so on. This product structure, the cutting material quality is high, the raw material adaptability is wide, the operation and maintenance is convenient.
Parameters of Wood Chipper Machine
| Model | BX215 | BX216 | BX217 | BX218 | BX2110 | BX2113 | BX2113C | BX2116 | BX2116D |
| Knife drum diameter (mm) | 500 | 650 | 650 | 800 | 1000 | 1300 | 1300 | 1600 | 1600 |
| Feed open size (mm) | 400×200 | 550×260 | 700×260 | 700×330 | 1000×400 | 700×520 | 1250×520 | 900×680 | 1250×680 |
| Knife drum rotating speed (rpm) | 620 | 590 | 590 | 580 | 530 | 500 | 500 | 460 | 450 |
| Knife quantity (pcs) | 2-4 | 2-6 | 2-6 | 2-6 | 2-8 | 2-8 | 2-8 | 2-10 | 2-10 |
| Capacity (m³/h) | 5-8 | 10-15 | 15-20 | 18-25 | 30-40 | 30-40 | 50-70 | 90-110 | 160-190 |
| Main motor power (kw) | 45 | 55 | 75 | 110 | 160 | 220 | 400 | 560 | 710 |
| Wood chip size (mm) | 10-30 | 10-35 | 10-35 | 15-40 | 15-40 | 15-40 | 15-40 | 15-40 | 15-40 |
* The specifications are approximate and will vary depending on options selected.
* Can be customized according to customer needs
Main Features of Wood Chipper Machine
- The crushing chamber cover can be opened hydraulically, which is convenient for maintenance and the blade can be replaced.
- The screen size can be customized according to the different requirements of the final product size.
- Hydraulic buffer system ensures smooth operation
- Fixed, mobile, diesel engines, motors, etc. can be configured according to requirements. (5) Reverse feeding device, the belt conveyor can be reversed in the forward direction. The unit protects the machine when encountering large wood
- The capacity is higher than the traditional model, the feed size is larger, and the log diameter can be cut from 230-500mm
- The chain plate conveys the feed, and the feeding speed can be automatically adjusted according to the load of the main motor.
