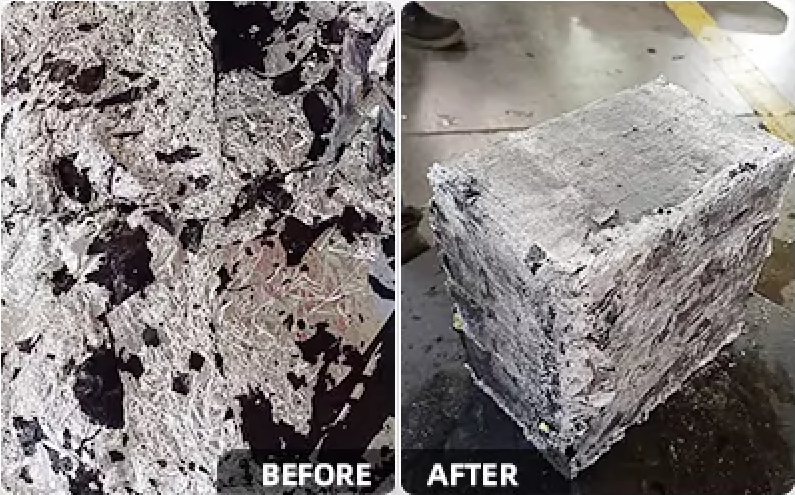

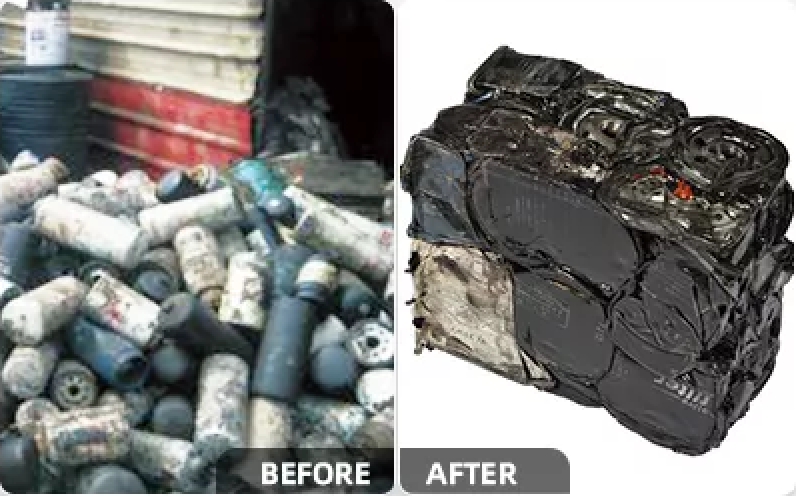

Y81 series hydraulic metal briquetting machine can squeeze various metal scraps (scraps, wood shavings, scrap steel, scrap aluminum, scrap copper, scrap stainless steel, scrapped cars, etc.) into cuboids, octagons, cylinders and other shapes, which can reduce transportation and smelting costs and increase furnace speed. Suitable for scrap steel processing and distribution centers (bases), scrapped car dismantling and remanufacturing enterprises, steel and non-ferrous metal industries, etc.

Features:

1. All models are hydraulically driven, and manual operation or PLC automatic control can be selected.
2. Bale-discharging: “turn-out”, “push-out”, “forward-out” & manual discharging.
3. Diesel engines can be selected as power, and it can work normally in places without power.
4. It can be customized according to your needs, such as different pressures, material box sizes, bag block sizes and shapes, etc.

Application

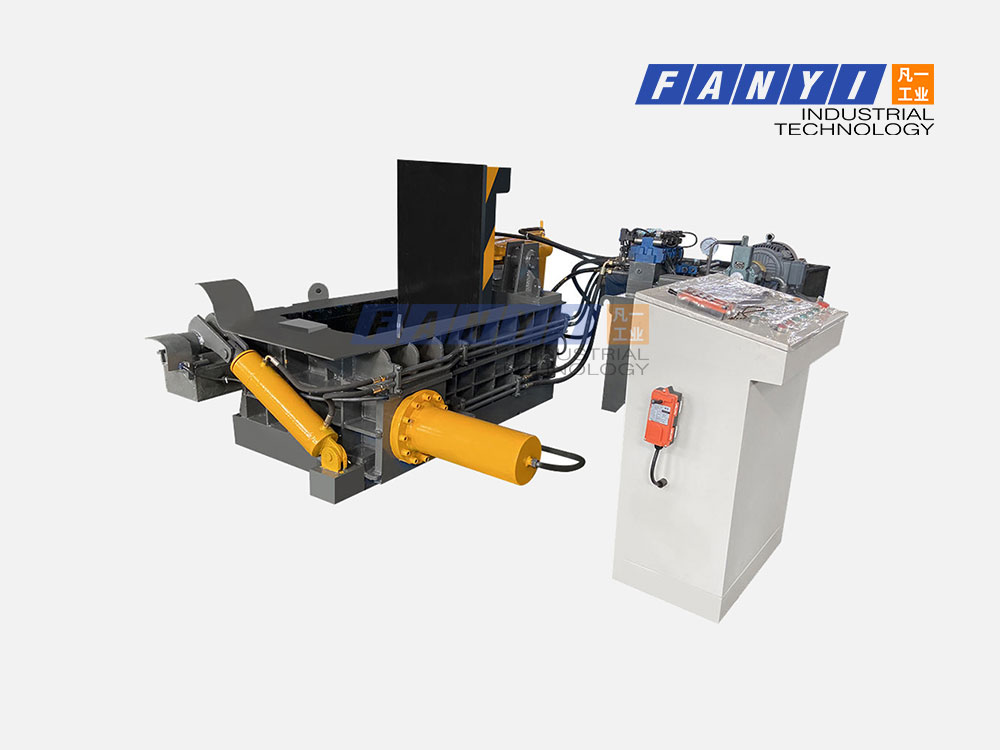

       Y81 Metal Baler Machine is applied in steel mills, foundries, recycling plants, ferrous & non ferrous smelting industry to press scrap metal into acceptable furnace charges in shapes of cuboids, cylinders & octagons.

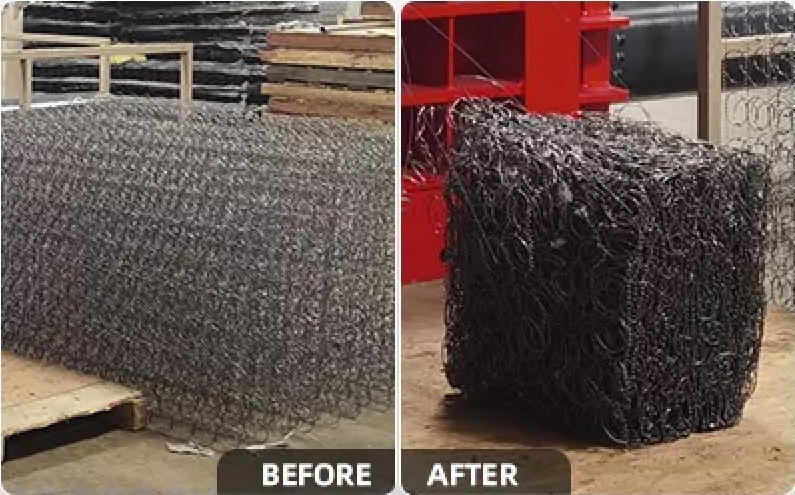

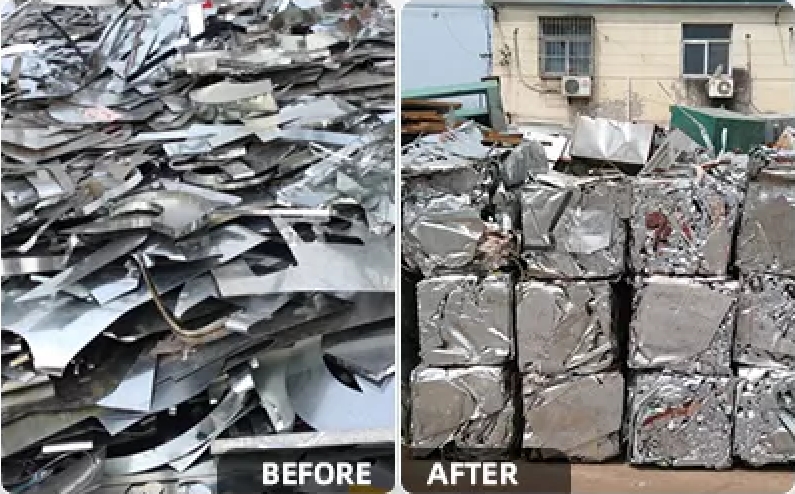

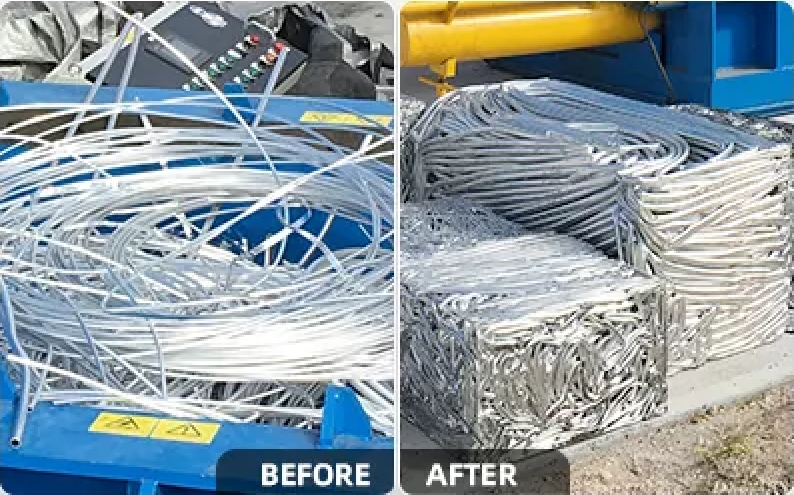

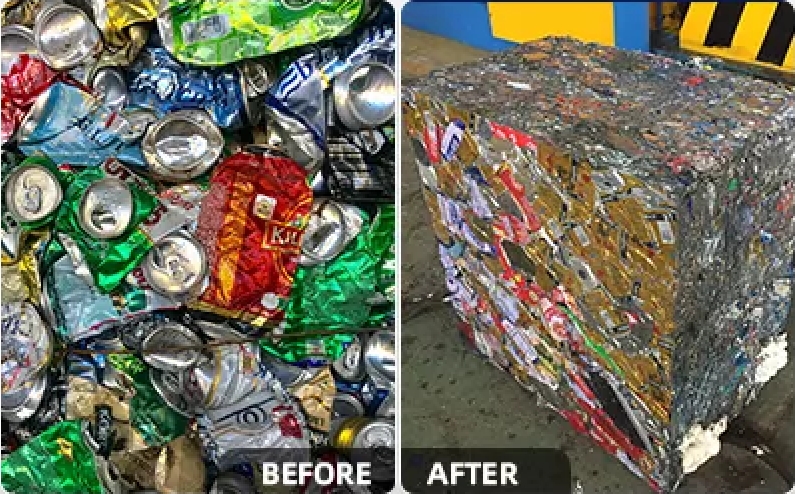

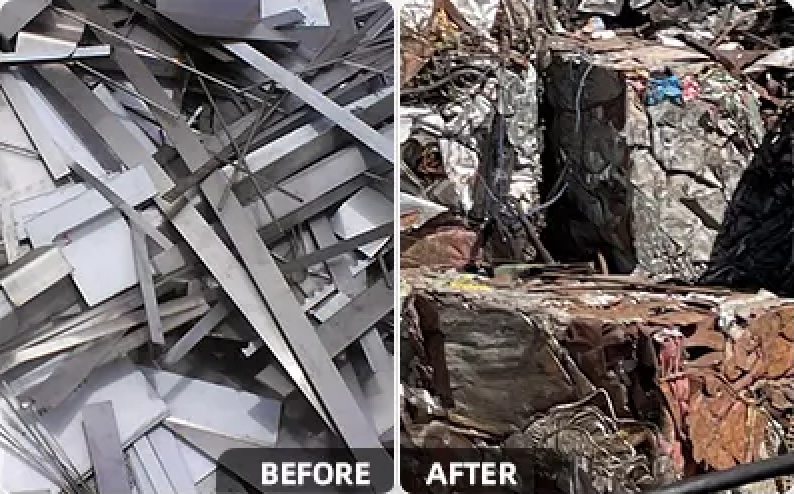

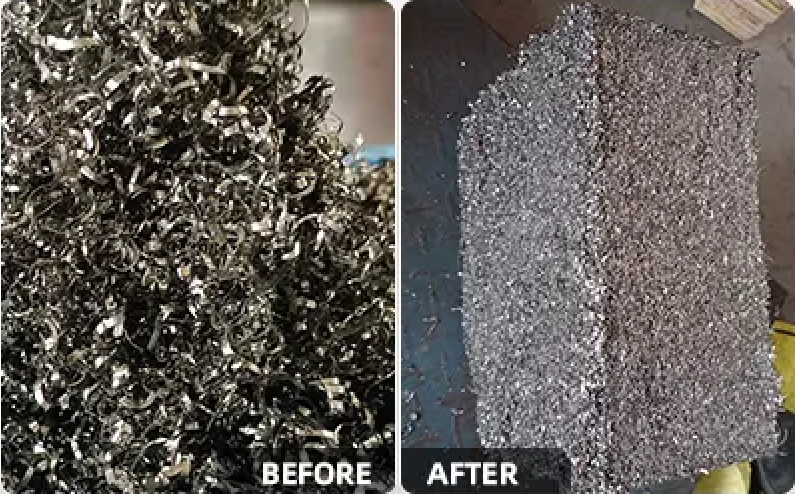

       Y81 Metal Baler Machine is good for car scrap (cut to pieces), bicycles, roof & fence material, tin plates, rebars, empty cans & drums (without paint), all sorts of metal sheets/plates, bars/rods, pipes/tubes, turnings/shavings, light metallic structural parts, miscellaneous low carbon scrap steel, and non ferrous metal scrap (stainless steel, aluminum alloy, copper, etc).

Model	Nominal Force (kn/ton)	Chamber size (mm)	Bale section (mm)	Power (Kw)	Bale discharging mode
Y81-630	630/63	1000*600*500	200*200	11	Turn over side push
Y81-1000	1000/100	1000*600*500	230*230	11	Turn over side push
Y81-1250	1250/125	1200*700*600	300*300 250*250	15	Turn over side push
Y81-1600A	1600/160	1600*1000*700	350*350 400*400	22/30	Turn over side push
Y81-1600B	1600/160	1600*1200*800	350*350 400*400	22/30	Turn over side push
Y81-1600C	1600/160	1400*800*700	350*350	37	Turn over side push
Y81-2000A	2000/200	1600*1000*800	400*400	30/37	Turn over side push
Y81-2000B	2000/200	1600*1200*800	400*400 450*450	30/37	Turn over side push
Y81-2000C	2000/200	1800*1400*800	400*400 450*450	30/37	Turn over side push
Y81-2000D	2000/200	2000*1400*900	450*450	30/37	Turn over side push
Y81-2500A	2500/250	2000*1400*900	500*500	44/60	Turn over side push
Y81-2500B	2500/250	2000*1750*1000	500*500	44/60	Turn over side push
Y81-2500C	2500/250	2000*1750*1200	600*600	44/60	Turn over side push
Y81-3150A	3150/315	2000*1400*1000	500*500	60/90	Turn over side push
Y81-3150B	3150/315	2000*1750*1200	500*500 600*600	60/90	Turn over side push
Y81-3150C	3150/315	2500*2000*1200	600*600	60/90	Turn over side push
Y81-4000	4000/400	3000*2000*1200mm	600*600	2*45	Turn over side push
Y81-4000A	4000/400	2000*1750*1200mm	500*500	2*45	side push
Y81-4000B	4000/400	2500*2000*1200mm	600*600	2*45	side push
Y81-4000C	4000/400	3000*2000*1200mm	600*700	2*45	side push
Y81-4000D	4000/400	5000*2000*1200mm	700*700	3*45	side push
Y81-6000	6000/600	3200*2000*1200mm	700*700	4*45	side push

* The technical parameters above are not binding, we reserve the right to adjust according to the actual need.
* If you need a non-standard model with a different bale size or shape, you can call or email us for customization.
