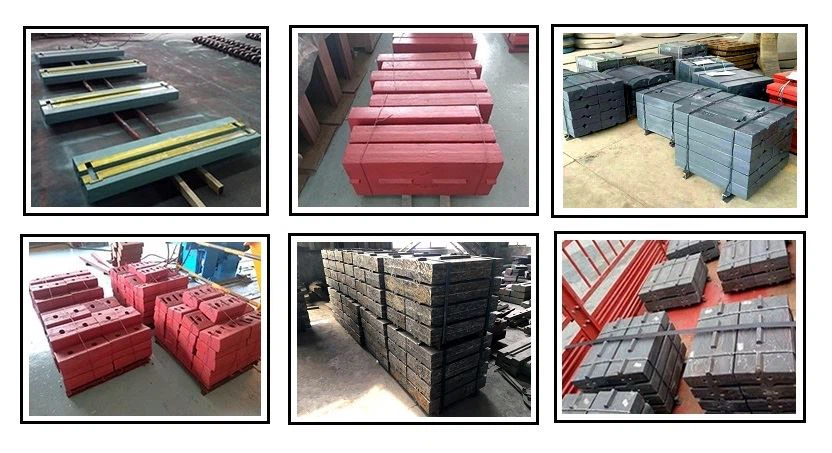

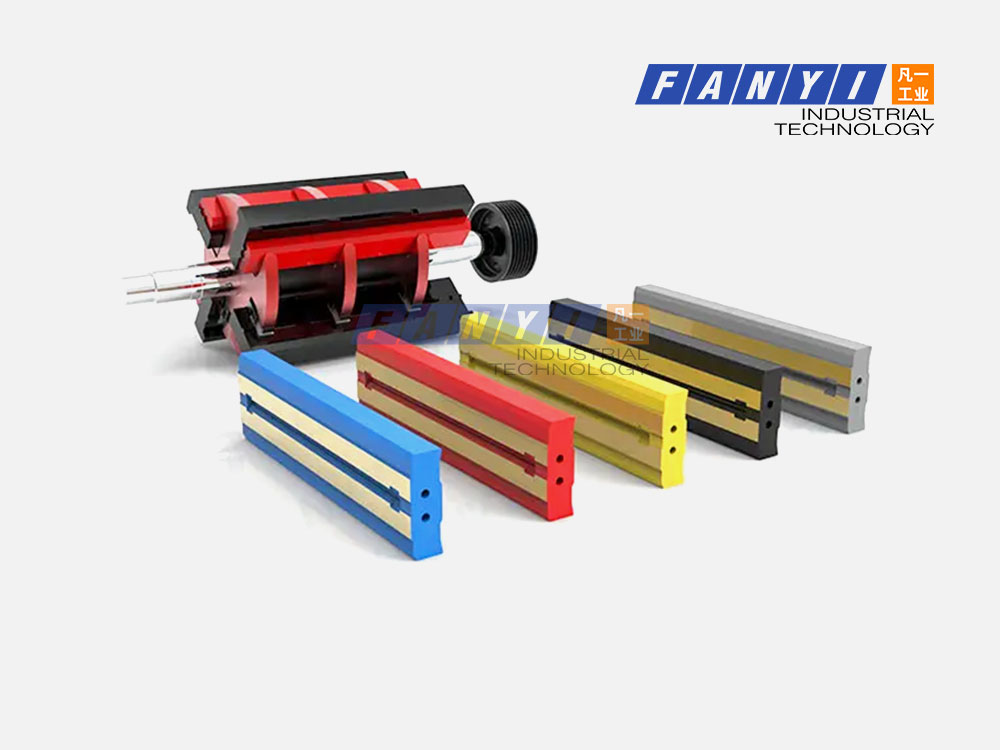

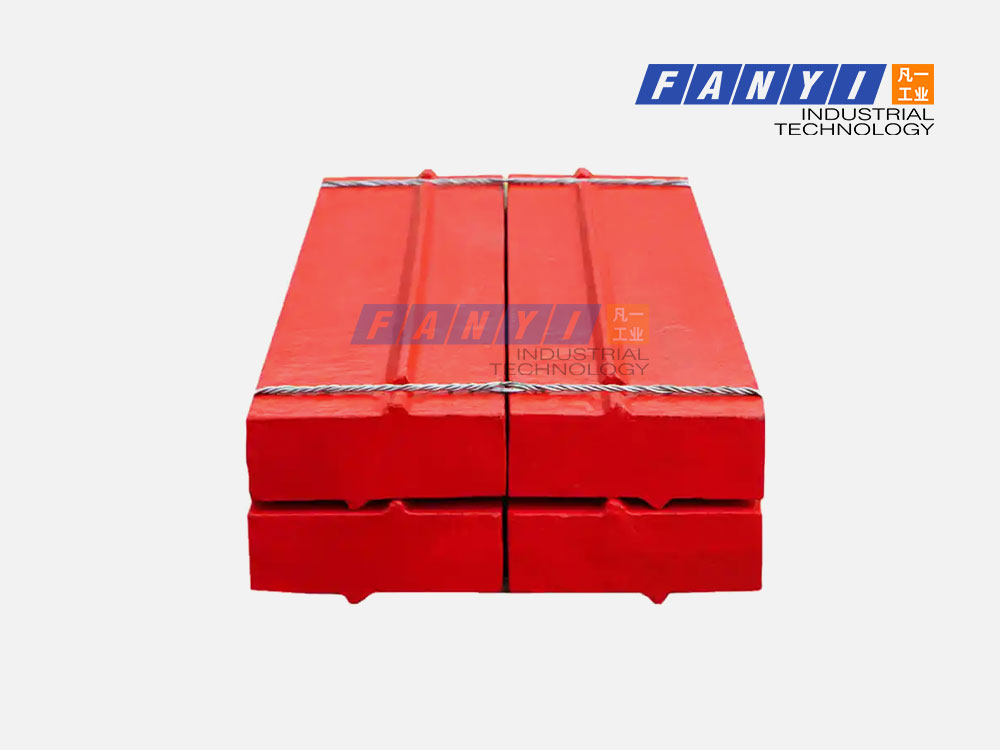

Product Name: Impact Crusher Blow Bars

Materials: Cr26, Cr27, Mn13Cr2 , Mn18Cr2, Mn22Cr2…

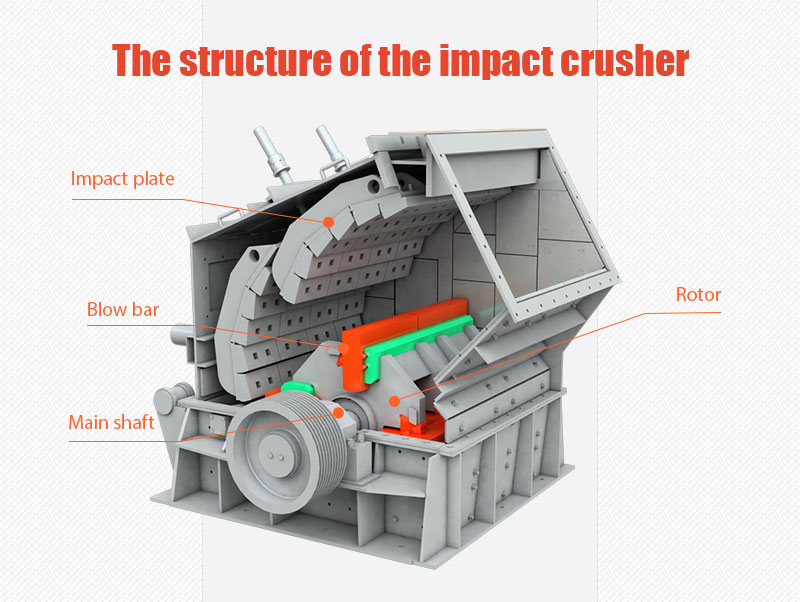

1. Blow bar is a key component of impact crusher.
2. The material of blow bar is usually selected according to the function of impact crusher.
3. The blow bar of impact crusher is a thick metal plate, usually a mixture of chromium, which is forged to effectively crush materials such as ore, asphalt, concrete, limestone, etc.

Available models for impact crusher parts

Impact Crusher	PF series	PF1007,PF1010,PF1210,PF1214,PF1315,PF1320,PF1420,PF1620
	NP series	NP1313,NP1415,NP1620,NP2023,NP1110,NP13,NP15,NP20
	Trlo APP series	APP4354,APP5148,APP5160,APP5560,APP6384,APP8084,
	Trlo APS series	APS3030,APS5148,APS5160,APS4034,APS4054,APS6084
	Telsmith Secondary HIS series	HS2421,HS2430,HS3036,HS3048,HS4230,HS5252,HS5263,PA6060

Parts & Consumables Name:

1. Impactor Liner, Apron Liner, Impact Plate, Side Liner, Curtain Liner, Impact Liner.
2. Mill Liner, Grinding Balls.
3. Impact Crusher Blow Bars, Blow Hammer, Impact Bar, Impact Hammer.
4. Jaw Plate, Jaw Tooth, Jaw Die, Jaw Teeth, Stationary jaw, Steady Plate, Fix plate, Fixed Jaw, Swing Jaw Plate, Movable Jaw, Jaw Fixed, Jaw Swing, Jaw Moveable.
5. Jaw Wedges /Taper Wedges, Jaw Lock.
6. Cheek Plate /Side Plate, side Liner, up Liner, and lower Liner.
7. Toggle plate, toggle bearing, toggle seat.
8. Bowl Liner /Concave Ring, Cone Liner.
9. Mantle Liner, Cone Liner.

Material Capacity & Following Standards

US	Australia	British	German	South Africa	Japan	China
ASTM A128/A532	AS2074 H1A/-H1B	BS3100/ BS4844	GX 130 MnCr2	SABS 407 Type 1 & 2	SCMnH11	GB/T 5680-2010

• We Supported a wide range of alloys with different Heat treatment capabilities
• Austenitic Manganese steels 14%MN, MN13CR2, MN18CR2, MN22CR2 MN13CRMO, MN18CRMO, MN22CRMO
• High chromium white cast irons Chrome 15%, Chrome 25%, Chrome 30% Cr25NiMo, Cr30NiMo and Etc
• Alloy steels in Various grades (SWB Germany)
• High and low Carbon Steel
• Ni-hard 2,3, 4
• Customized Steel

Material	C	Mn	Si	Cr	Molly	Nikker	P	S	Suit to
Mn14Cr2	1.0-1.3	Mn:11-14	0.3-0.6	1.7-2.4	—	—	≤0.05	≤0.03	Jaw Plate, Side Plate, Mill Liner
Mn14Mo1	1.0-1.3	Mn:11-14	0.3-0.6	—	0.8-1.2	—-	≤0.05	≤0.03	Shredder Hammer, Track Shoe
Mn18Cr2	1.1-1.4	Mn:17-20	0.3-0.6	1.7-2.4	—	—-	≤0.05	≤0.03	Jaw Plate, Bowl Liner, Mantle
Mn18Cr2Mo0.6	1.1-1.4	Mn:17-20	0.3-0.6	1.7-2.4	0.6-0.8	—	≤0.05	≤0.03	Hard Abrasive Rock Crushing
Mn22Cr2Mo	1.1-1.4	Mn:20-24	0.3-0.6	1.7-2.4	—-	—-	≤0.05	≤0.03	Heavy Duty Concave, Mantle
KMTBCR15	2.8-3.2	Mn:0.6-0.8	0.6-0.8	14.5-15.5	0.2-0.3	0.2-0.3	≤0.06	≤0.06	Paddle Arm, Tip And Mixer Liner
KMTBCR27	2.8-3.3	Mn:0.6-0.8	0.6-0.8	26.5-28	0.3-0.5	0.3-0.5	≤0.06	≤0.06	Blow Bar, Paddle tip, VSI Parts, Anvil
KMTBCR30	2.8-3.3	Mn:0.6-0.8	0.6-0.8	28.5-30	0.3-0.5	0.3-0.5	≤0.06	≤0.06	Blow Bar, Paddle Tip, VSI Parts
Cr27Ni2Mo1	2.8-3.3	Mn:0.6-0.8	0.6-0.8	26.5-28	0.8-1.2	1.5-2.0	≤0.06	≤0.06	Heavy Duty Blow Bars
Ni-Hard	2.8-3.2	0.2-0.8	1.5-2.2	8.0-10.0	0.3-0.5	4.0-5.5	≤0.06	≤0.06	Mill Liner, Augers, Paddle Tip
Martensite Alloy Steel	0.3-0.6	0.8-1.5	≤1.2	1.8-2.3	0.2-1	0.5-0.8	≤0.06	≤0.06	Blow Bar, Mill Liner etc
Carbon Steel	0.08-0.25	0.3-0.6	0.15-0.35	—–	—-	—-	≤0.045	≤0.045	Torch Ring, Shell, Bowl, Cone

Applications:

Widely used in the Mining Industry, Quarrying & Aggregate, metallurgical and Recycling industry, construction Plants, heavy engineering Industries, chemical industry, and silicate industry for crushing hard and medium hard ore and rock, such as iron ore, limestone, copper ore, sandstone, quartz, Basalt, Granite, Building Waste, Metal Scrap and so on.
