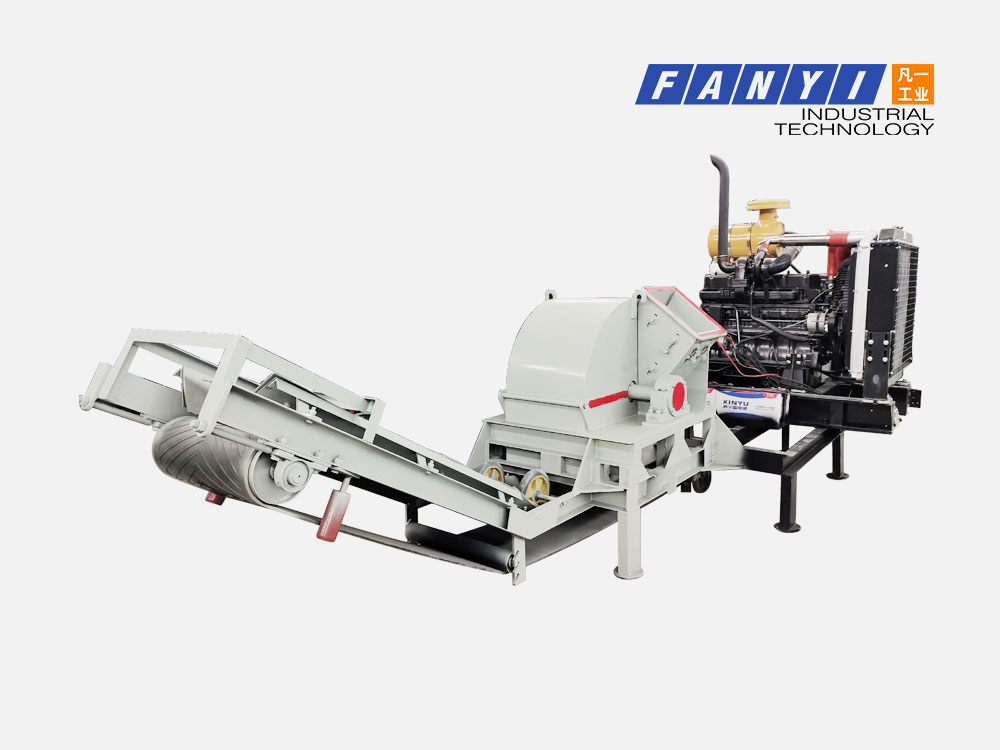

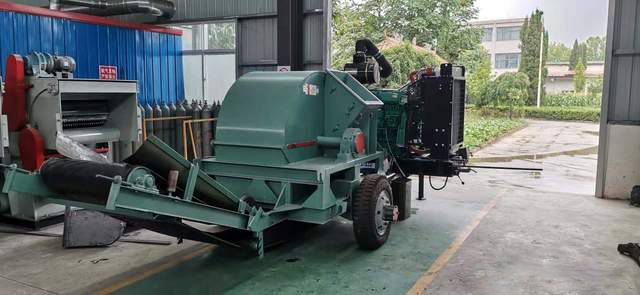

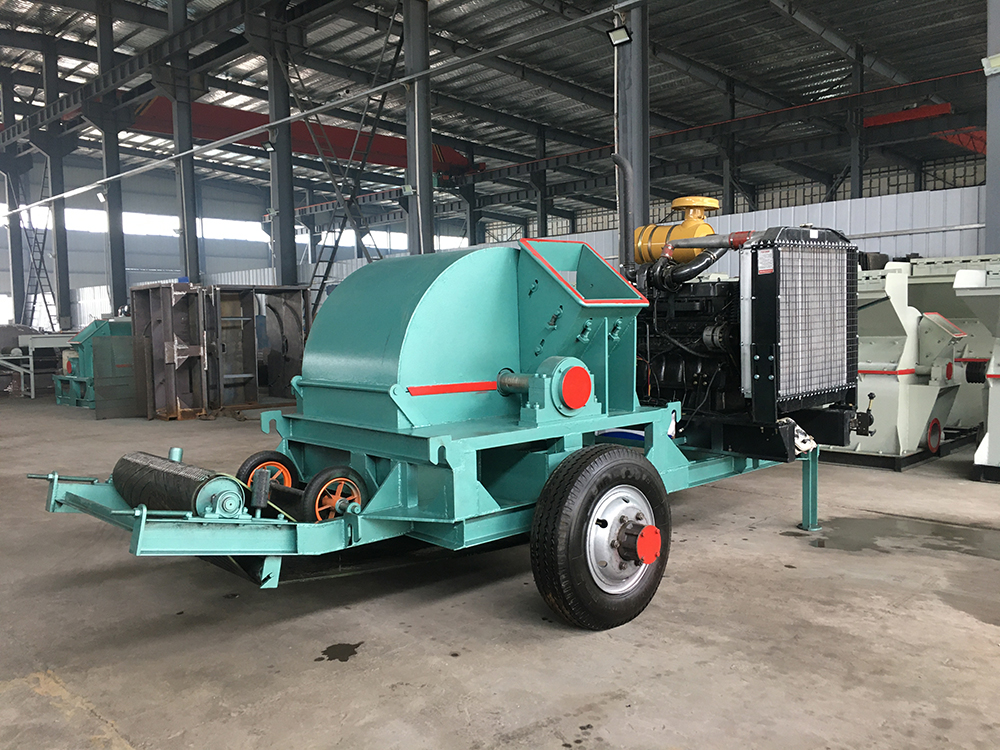

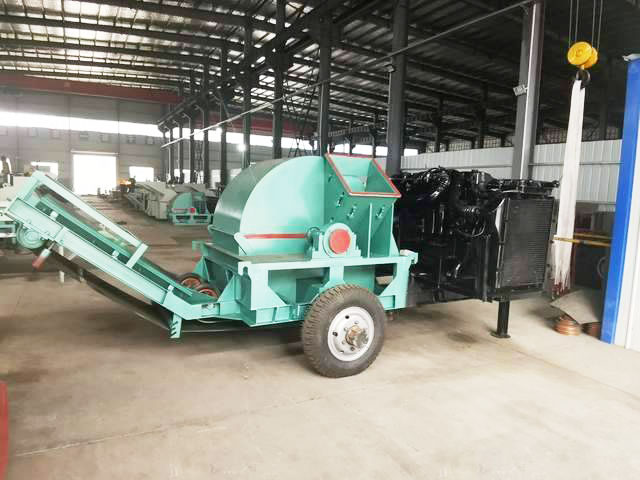

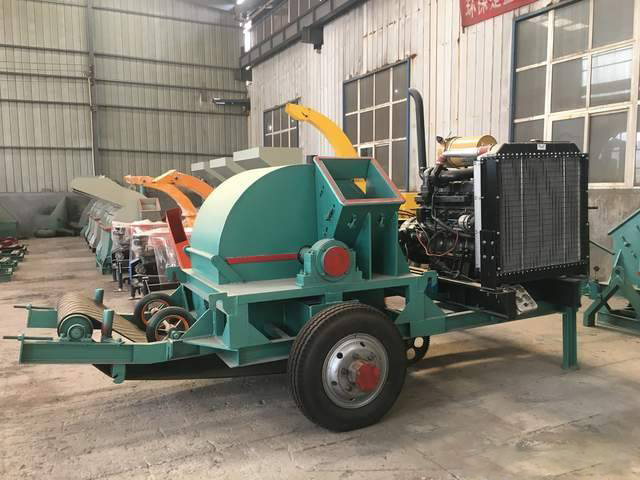

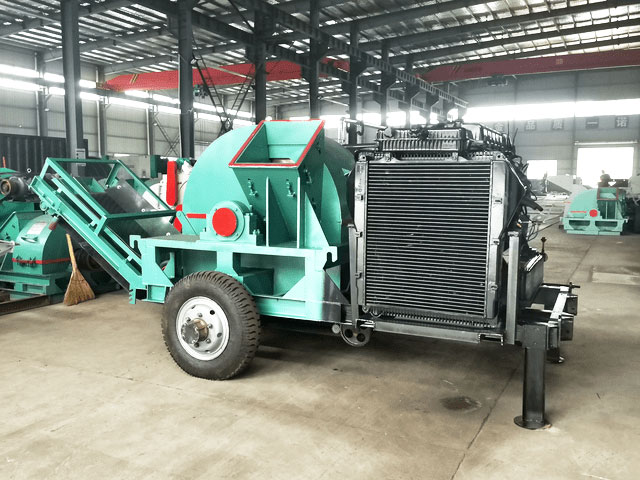

Wood Sawdust Crusher (Diesel Engine Powered)
The Wood Sawdust Machine is a multifunctional hammer mill that processes wood logs, branches, stalks, and chips into fine sawdust. It uses blades and high-speed hammers to produce uniform particles for charcoal briquettes, wood pellets, mushroom cultivation, and paper production.
- Multi-Material Processing
- Durable & Heavy-Duty Build
- Wide Application for Production Lines
CATEGORY: Wood chipper
DESCRIPTION
Multifunctional sawdust hammer mill wood powder crusher machine
This crusher includes two inlets, one is for feeding wood branches and wood logs, the other is for feeding stalks and wood chips. Besides, it has both blades and hammers. Blades can cut the wood into chips and shavings. Hammers are rotating at high speed and striking the big size materials into small sawdust. When the sawdust reaches the required size, it can get through the mesh of the sieve and discharge from the outlet.
The spare parts of the wood crusher incudes the baldes, hammers, and sieve. Blades are made of alloy, durable and sharp. Hammer is heated treated and surface hardened. Regarding the sieves, there are different mesh sizes from 3-20mm to produces various sawdust.
Wood crusher is a necessary machine in wood charcoal production. It grinds the wood to sawdust of less than 5mm to meet the requirements of the sawdust briquette machine. In addition to this, sawdust can also be used in wood pellet making, mushroom planting, and paper factories. Wood shavings can be used for making shaving boards, and animal bedding.
Technical Parameters
| Model | Power | Capacity (kg/h) | Rotate speed (r/min) | Feed port size (mm) | Oversize (mm) |
| 420 | 7.5 | 500-1000 | 1800 | 170*170 | 1200*700*900 |
| 500 | 22 | 800-1500 | 1800 | 200*180 | 1500*800*900 |
| 600 | 30 | 1000-2000 | 1500 | 230*230 | 1500*850*850 |
| 700 | 37 | 1500-2500 | 1500 | 250*250 | 1600*850*900 |
| 900 | 55 | 2000-3000 | 1200 | 280-280 | 1700*900*950 |
| 1000 | 75 | 3000-4000 | 1000 | 280*290 | 2300*1200*950 |
| 1200 | 90 | 5000-7000 | 1000 | 420*400 | 1500*1600*1300 |
| 1500 | 110 | 6000-8000 | 950 | 460*490 | 1700*1500*1400 |
| 1800 | 132 | 8000-11000 | 950 | 530*560 | 2000*1850*1620 |
Note: 1. Capacity May Vary with Different Materials and Feed Sizes.
2. The technical parameters above are not binding, we reserve the right to adjust according to the actual need.
Material Application
