Raymond Roller Mill Parts

Raymond Roller Mill Parts 1. Main Frame 2. Motor Seat 3. Motor 4. Ventilation Base 5. Raymond grinding roller 6. Star Rack 7. Spring 8. Mill Body 9. Analyzer(Air Classifier) 10. Belt 11. Motor 12. Fine Powder Collecting Pipe 13. Motor Pulley 14. Bearing Seat 15. Analyzer Blade 16. Access Door 17. Air Induction Pipe …

CATEGORY: Raymond Mill Parts

TAGS: Mill, Parts, Raymond Roller Mill Parts, roller

DESCRIPTION

Raymond Roller Mill Parts

1 200610153605I7 — Raymond Roller Mill Parts

1. Main Frame 2. Motor Seat 3. Motor 4. Ventilation Base 5. Raymond grinding roller 6. Star Rack 7. Spring 8. Mill Body 9. Analyzer(Air Classifier) 10. Belt 11. Motor 12. Fine Powder Collecting Pipe 13. Motor Pulley 14. Bearing Seat 15. Analyzer Blade 16. Access Door 17. Air Induction Pipe 18. Raymond Roller Assembly 19. Raymond Grinding Ring 20. Scraper Blade 21. Belt Pulley

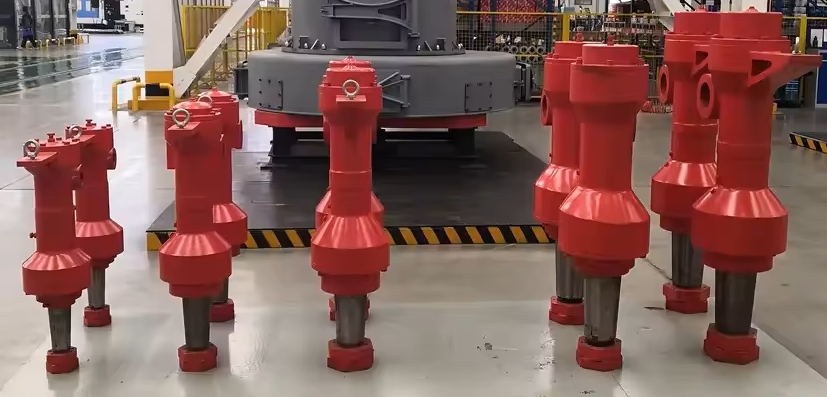

Grinding Roller 2 — Roller Mill Assembly

Raymond Mill Grinding Roller 4 — Roller Mill Assembly

Raymond Roller Mill Parts

With the experiences we have collected, Capable of supplying the wear parts for following roller mill models:

MTW110 ™ | MTW138™ | MTW175™ | MTW215™|SCM6015™ | SCM8021™ | SCM10027™ |XZM221™ | XZM224™ | XZM236™ | XZM244™ |HGM80™ | HGM90™ | HGM100™ | HGM100A™ | HGM125™ | HGM1680| TGM100 ™ | TGM130™ | TGM160™|MTM100 ™ | MTM130™ | MTM160™ |YGM75™ | YGM85™ | YGM95™ | YGM130™ | YGM160™
