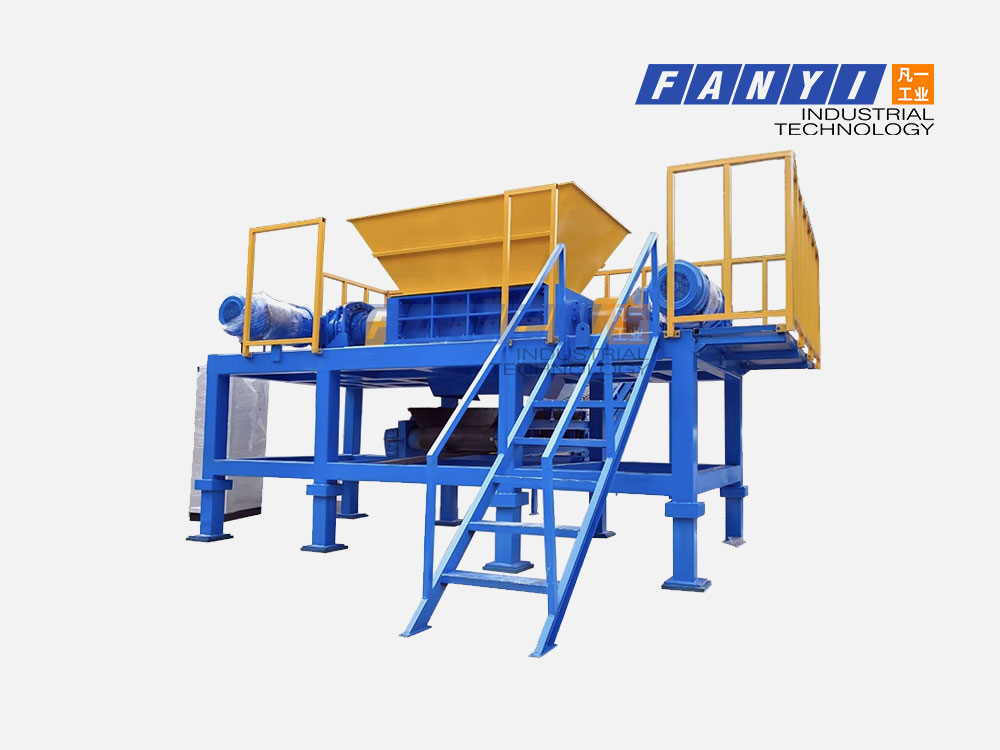

Twin shaft shredders are engineered to handle flexible and ductile materials and can be effectively used for purposes such as destruction, volume reduction, or recycling. These shredders operate at low speeds, provide excellent cutting force, and are able to handle challenging materials while ensuring minimal noise and dust emissions.

The main challenges facing twin shaft shredders come from complex operating conditions and fluctuating materials. These shredders are designed to work in harsh environments where material flows can be variable and sometimes unpredictable. Insufficient torque may hinder the completion of the task and may result in energy waste due to continuous reversal. On the other hand, if the torque is too high and does not match the machine’s performance, it may cause serious accidents, including catastrophic failure of the shaft.

Through innovative design concepts, solid raw material selection, superb manufacturing processes and continuously enhanced control software, it ensures that its twin-shaft shredders provide excellent performance and reliability. These attributes make our shredders the best choice for handling complex materials.

Twin-shaft shredders operate successfully in various environments around the world, including waste sorting centers, recycling plants, waste-to-energy facilities, cement plants and composting sites. Its excellent performance always exceeds industry standards and has won the recognition and trust of global customers. This accolade is a testament to its superior efficiency, durability and state-of-the-art technology.

Typical Applications Include:

• Plastics –Mixing Plastics, Plastic Drums or Containers, etc.
• Electronic Scrap – WEEE Directive Materials.
• Municipal Solid Waste (MSW) – domestic garbage, kitchen garbage, industrial garbage, garden garbage, glass products.
• Tires – Car Tires, Debeaded Truck Tires.
• Wood – Pallets etc.
• Packaging Materials – Cardboard etc.
• Metals – Lead, Aluminium, Copper, etc.
• Textiles.
• Medical waste: small medical devices, medical waste, pharmaceutical waste, infectious waste, various plastic waste, latex material waste, syringe waste.

Features

• Slow Speed High Torque Shredding Principle.
• Low Dust and Low Noise Operation.
• Rugged Low Maintenance Design.
• Shock Absorbing Gearbox Mounting Arrangement reduces Stress on Drive Components.
• Strong Blades manufactured from high quality steels are suitable for shredding tough materials.
• Two Piece Split Bearing Housing Arrangement enables quick access to bearings and rotor.
• Advanced Adjustable Sealing System prevents product migration and ensures long bearing service life.
• Stand Alone Electrical Control Panel with PLC Control System.

Product name	twin shaft shredder case
Material	HSS; SKD11; SKD61; Cr12Mov; or selected by the customers
Hardness	58-60 HRC (by the material selected)
Dimension tolerance	OD:±0.1, ID:±0.03 -0.00, Thickness: ±0.03
OEM service	Available

Technical Data

Model	Blade diameter	Spindle diameter (mm)	Reducer model	Motor	Size L*W*H(mm）
600	220mm	110mm	ZQ400*2	11kw*2-15kw*2	2500*1100*1600
800	300mm	140mm	ZQ500*2	18.5kw*2-22kw*2	3000*1400*1800
800	400mm	180mm	Square box 750*2	37kw*2	3700*1800*2200
800	400mm	180mm	Square box 750*2	45kw*2	3700*1800*2200
1000	400mm	180mm	Square box 750*2	45kw*2	3900*1800*2200
1200	400mm	180mm	Square box 750*2	45kw*2	4100*1800*2300
1400	500mm	260mm	Square box 850*2	55kw*2	4700*2100*2400
1600	500mm	260mm	Square box 1000*2	75kw*2	5400*2400*2600
1800	600mm	280mm	ZSY500*2	90kw*2	5600*2400*2800
2000	650mm	320mm	GX2KAH17*2	132kw*2	6500*2500*2800

Note: 1. Capacity May Vary with Different Materials and Feed Sizes.
2. The technical parameters above are not binding, we reserve the right to adjust according to the actual need.
