Mantle & Bowl Liner For HP Series Cone Crusher Parts Mining Machinery Parts Manganese Crusher Spare Parts

Product Description:

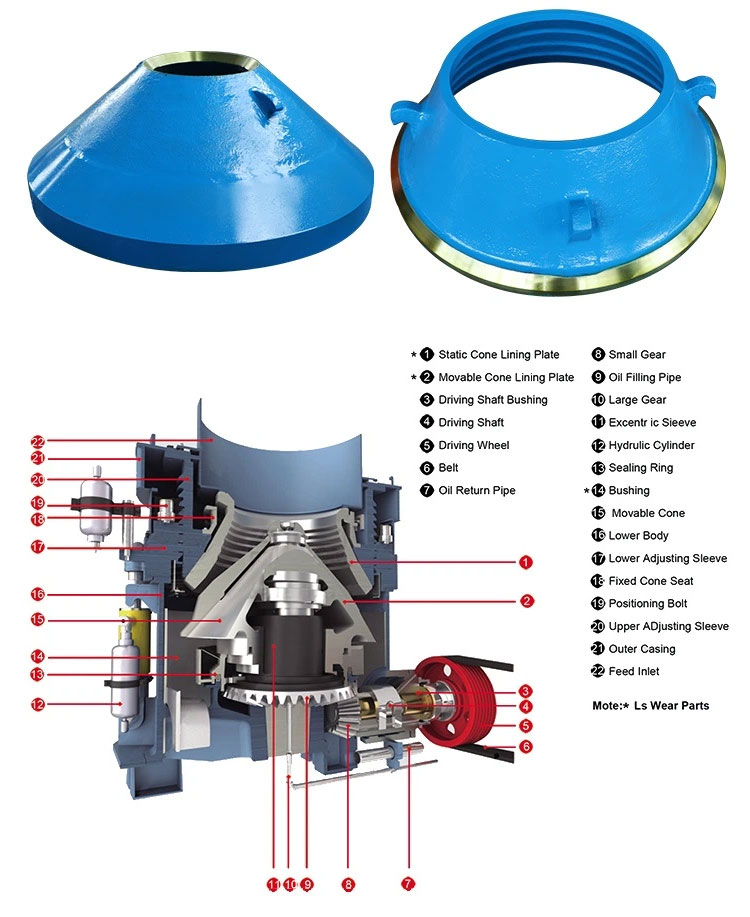

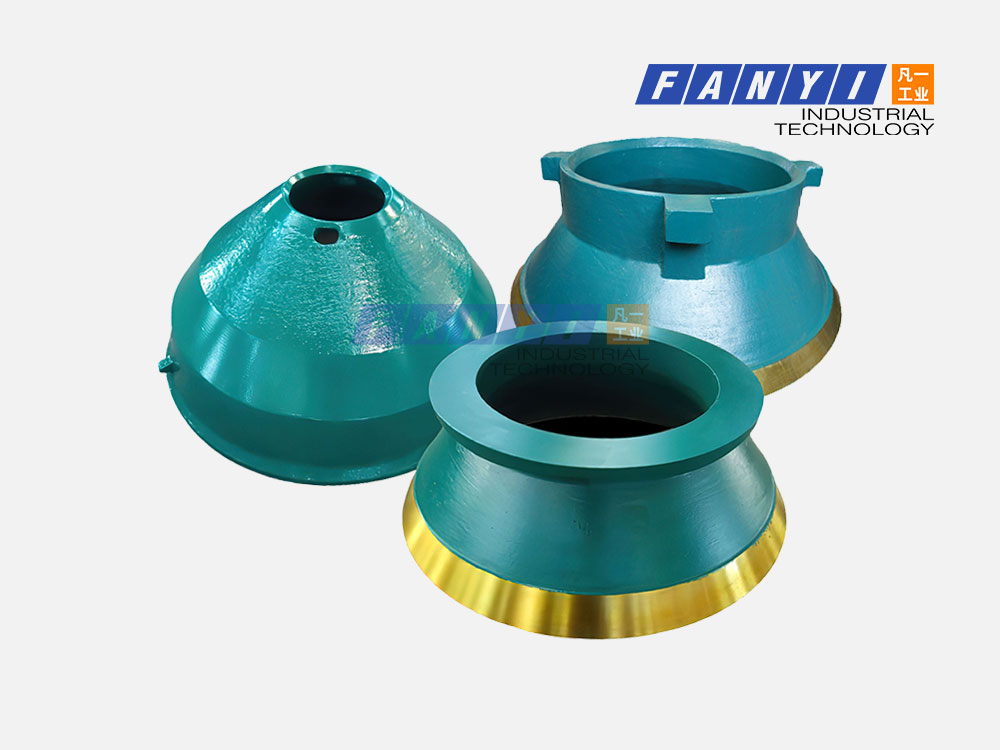

OEM Cone Crusher Spare Parts Bowl Liner & Mantle

Applicable equipment: Cone crusher, gyratory crusher, etc.

Main material: high-quality high-manganese steel, new composite materials, new-type high-manganese steel, ultra-high-manganese steel, super-strong high-manganese steel.

Product Name: Cone crusher parts/Concave/Mantle/Bowl liner

Applications: Widely used in mining industry, metallurgical industry, construction industry, chemical industry and silicate industry for crushing hard and medium hard ore and rock, such as iron ore, limestone, copper ore, sandstone and so on.

Product Benefits: Compared with the general market products, our products smooth surface, accurate dimensions, high wear resistance and longer life. Direct sales by the company foundry, cost-effective products.

Main Features

Material:	High manganese and customised materials
Use:	We can supply almost crusher parts

Available Bowl Liners of Crusher Brand

Cone Crusher Parts
SANDV1K	M HP SERIES		TEREX	TELSMITH	SYMONS	KUE-KEN (Brown)	SVEDALA	POWERSCREEN MAXDRAK	TEREX PEGSON MAXTRAK
CH420	HP100	GP100S	RC36	24”	2′	CT28”	H22”	1000	TC1000
CH430	HP200	GP200S	RC45	36”	3′	CT750	H200	1000SR	WC1000
CH440	HP300	GP300S	RC45-II	38”	4′	CT36”	H2000	1300	1000SR
CH660	HP400	GP500S	RC54	44”	4800 4 1/4′	CT40”	H36”	1500	TC1300
CH870	HP500	GP100	RC54-II	48”	5100 5 1/2′	CT1000	H3000		WC1300
CH880	HP700	GP200	RC60	52”	7′	CT51”	H45”		1500
CH890	HP800	GP300	RC66	66”	36”	CT130	H4000
CH895	HP3	GP550	RC45-III		48”		H6000	Pegson	Extec X SBS
CS420 S2800	HP4	GP11	MVP280		66”		H8000	700	X38
CS430 S3800	HP5	G49	MVP380				S36”	900	X4
CS440 S4800	HP8	G108	MVP450				S2000	1000
CS660 S6800	MP800	G412	MVP550				S3000	1300
CS820 S8800	MP1000	G612					S4000	1500

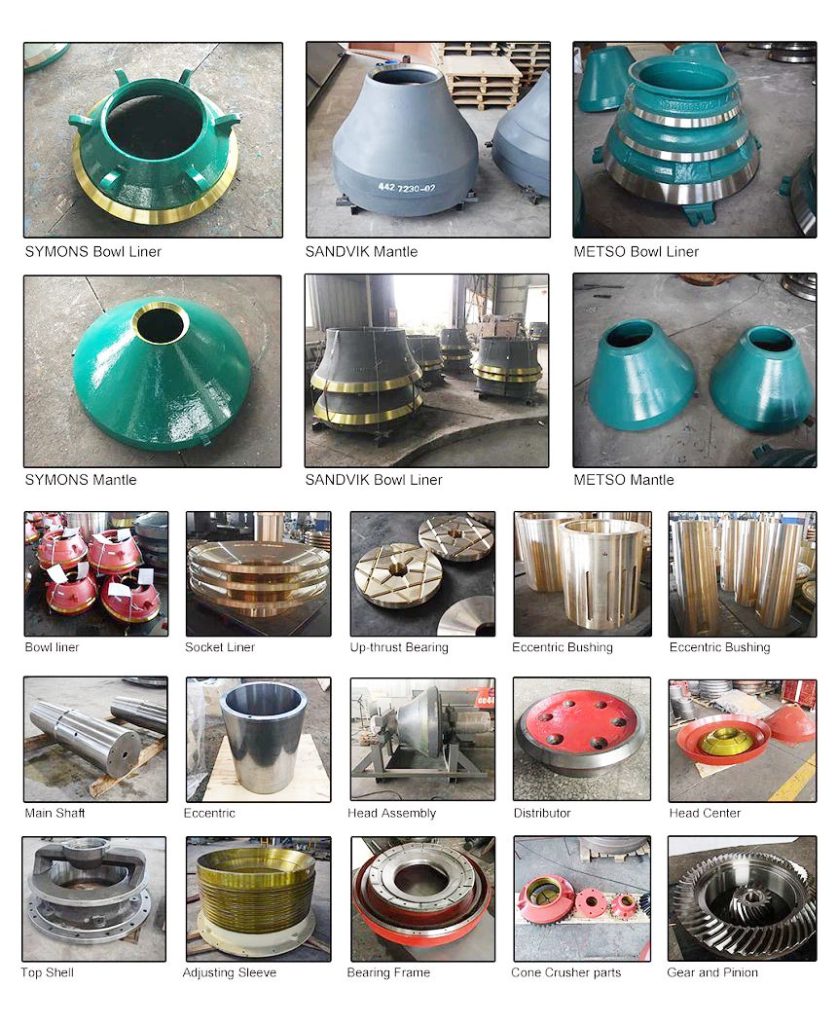

Crusher Replacement Parts

Mantles Concaves/Bowl Liners Bowl Feed Cones Main Frame Liners Main Frame Seat Liners Protection Cones Arm Guards

Main Frame Main Shaft Adjustment Ring Clamping Ring Dust Shell Counter Shaft Counter Shaft Box Counter Shaft Box Guard

Countershaft Bushing Pinion Oil Flinger Eccentric Eccentric Bushing Gear Thrust Bearing Counterweight

Counterweight Liner Socket, Socket Liner Head, Head Ball, Head Ball Bushing, Thrust Bearing, Locating Bar
